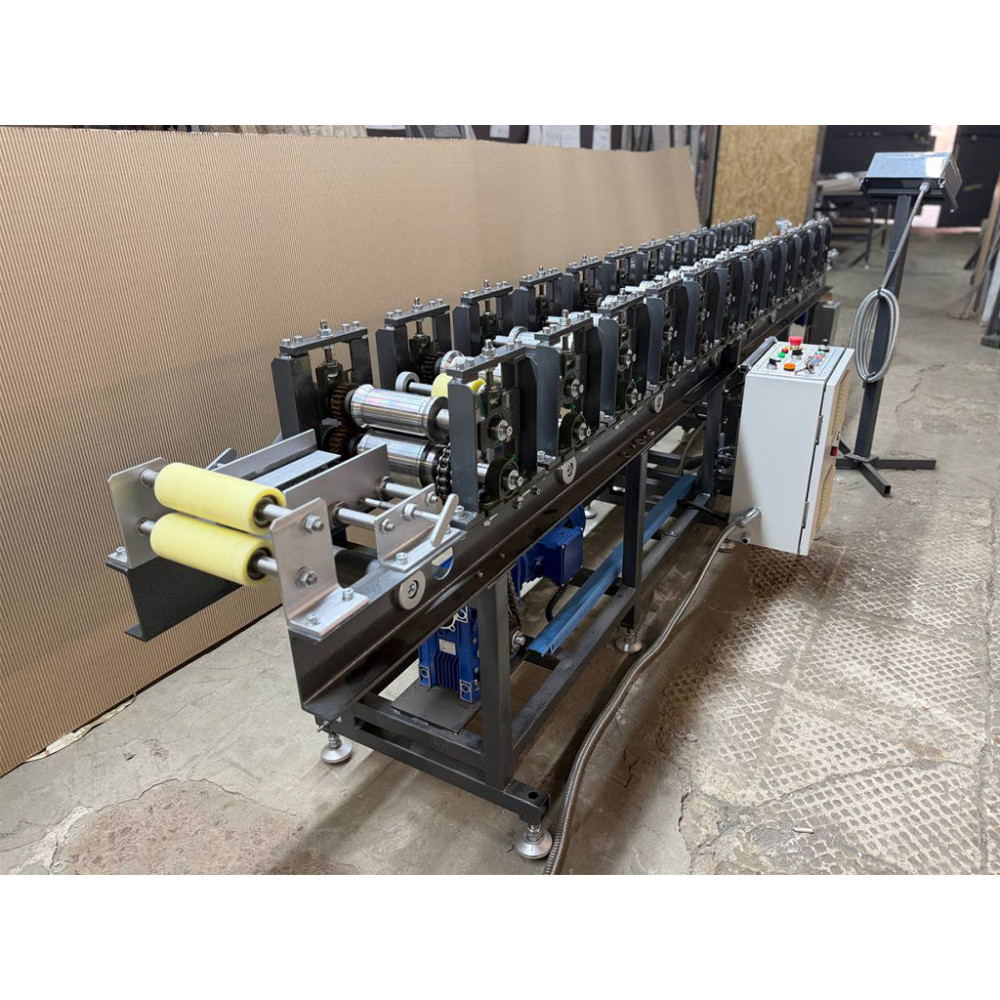

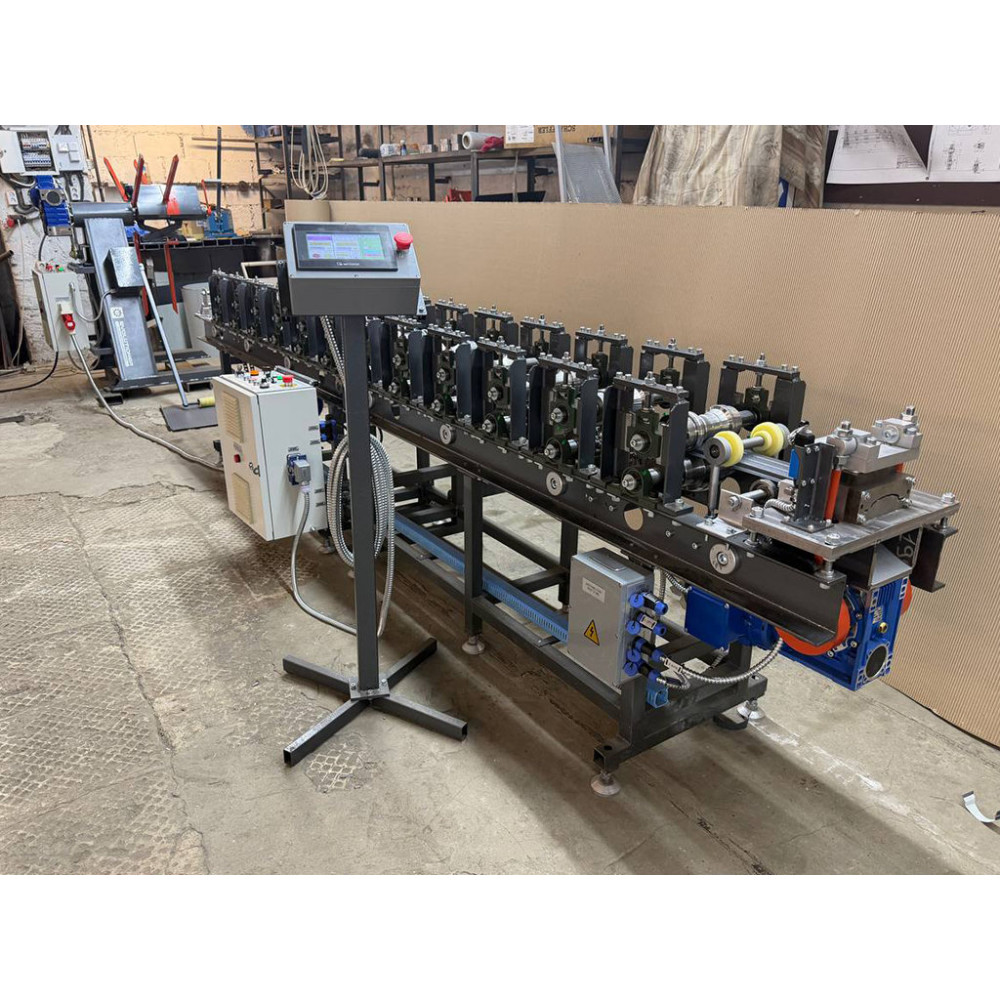

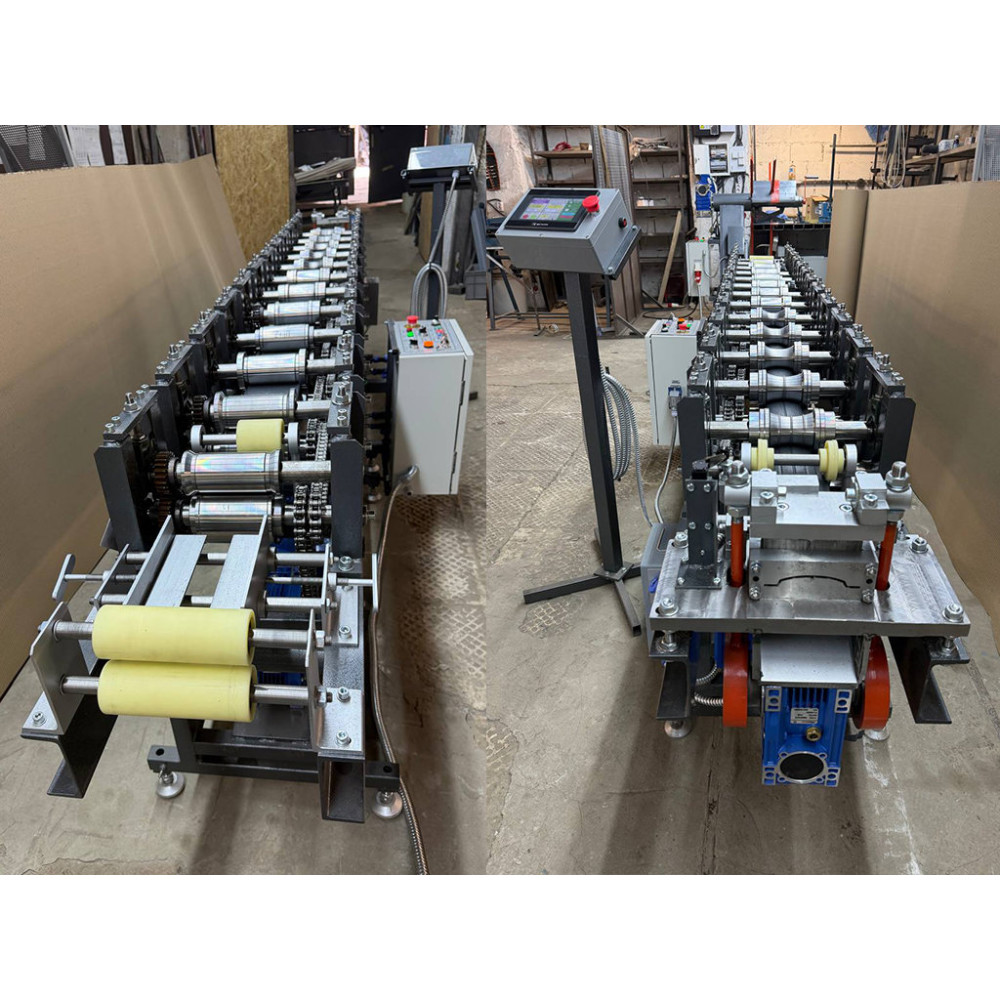

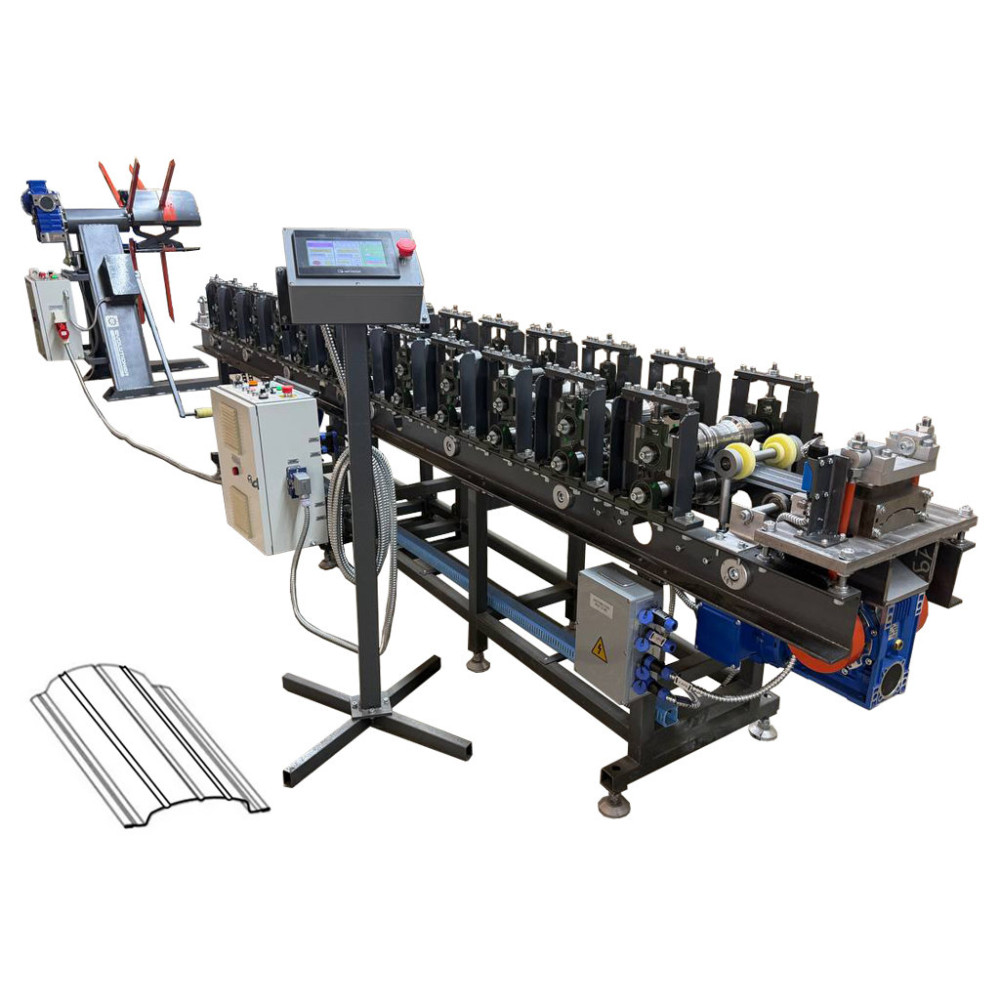

Automatic Metal Picket Fence Roll Forming Machine MPF-12

The MPF-12 Automatic Metal Picket Fence Roll Forming Machine is designed for continuous production of high-quality half-round metal picket fence profiles from coil steel. The machine performs the complete manufacturing process automatically, including material feeding, roll forming, stiffening rib forming and automatic cutting to the required length.

It is an ideal solution for manufacturers of metal picket fences, steel fences, garden fences, decorative fence panels and modern perimeter fencing systems.

Technical Specifications

• Machine Model - MPF-12

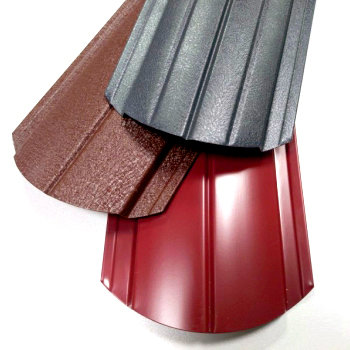

• Product - Half-round metal picket fence
• Roll Forming Stations - 12
• Stiffening Ribs - 1 or 3

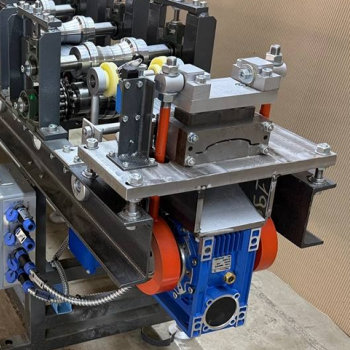

• Cutting System - Automatic electromechanical shear
• Main Drive Power - 1.5 kW
• Cutting Motor - 1.1 kW
• Machine Dimensions - 3745 × 935 × 550 mm
• Weight - 600 kg

---

Optional Equipment

The production line can be equipped with:

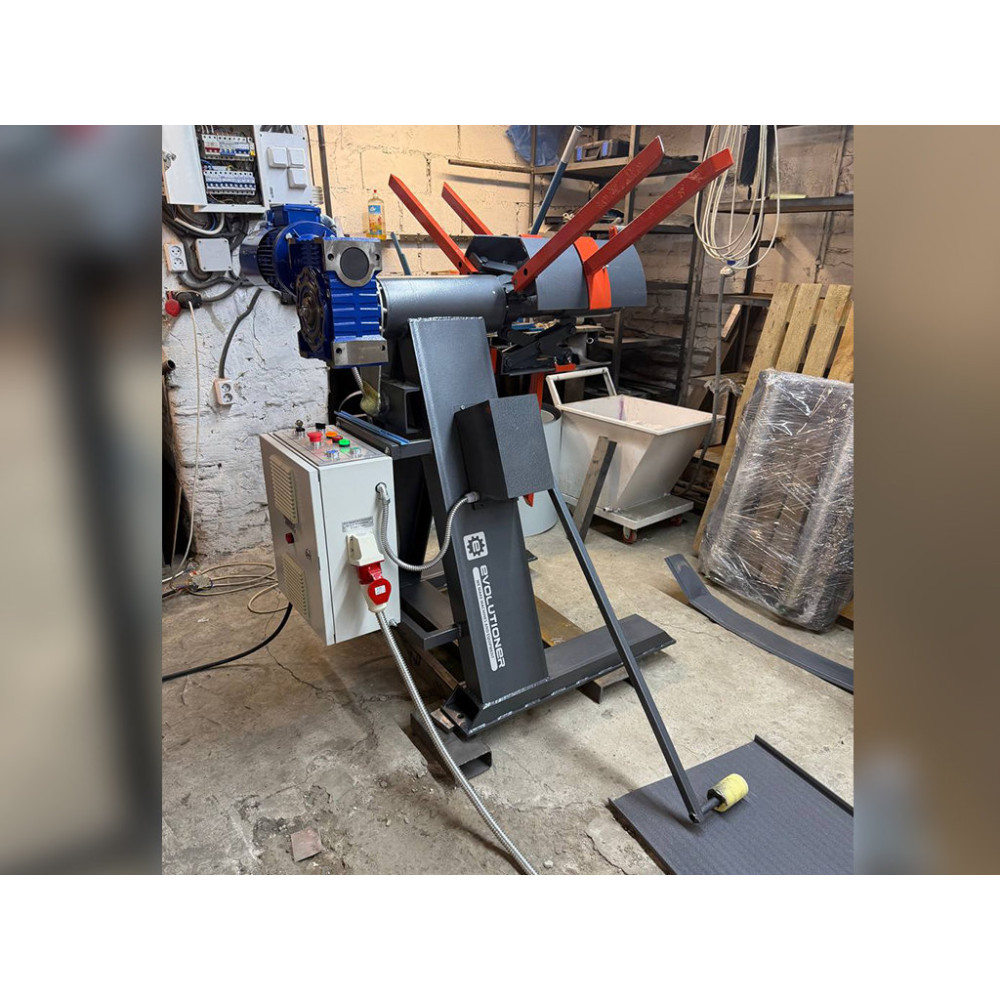

1. Manual decoiler up to 800 kg
2. Electric automatic decoiler up to 1500 kg

The configuration is selected according to customer production requirements.

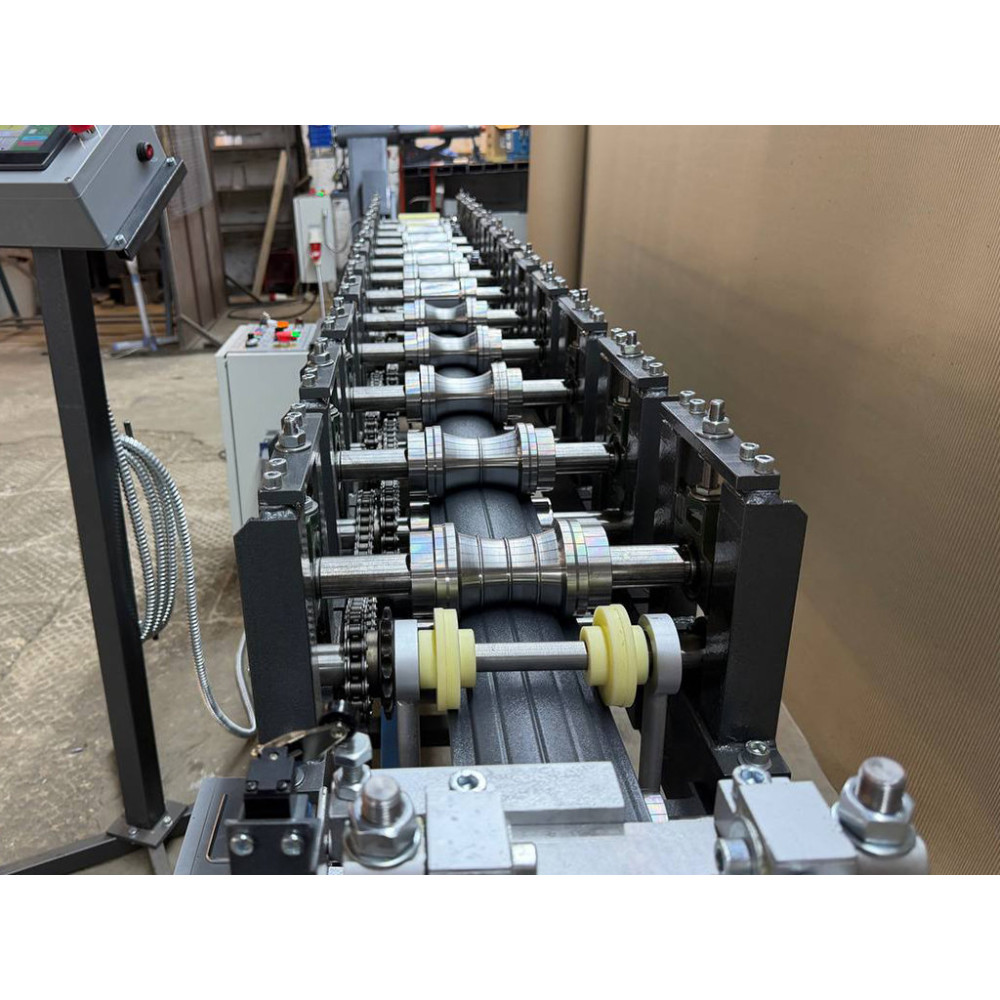

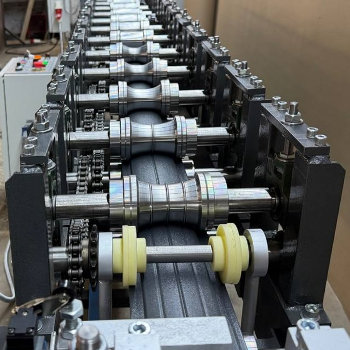

High Precision Roll Forming

The roll forming section consists of 12 forming stations, including a dedicated roller set for producing three strengthening ribs.

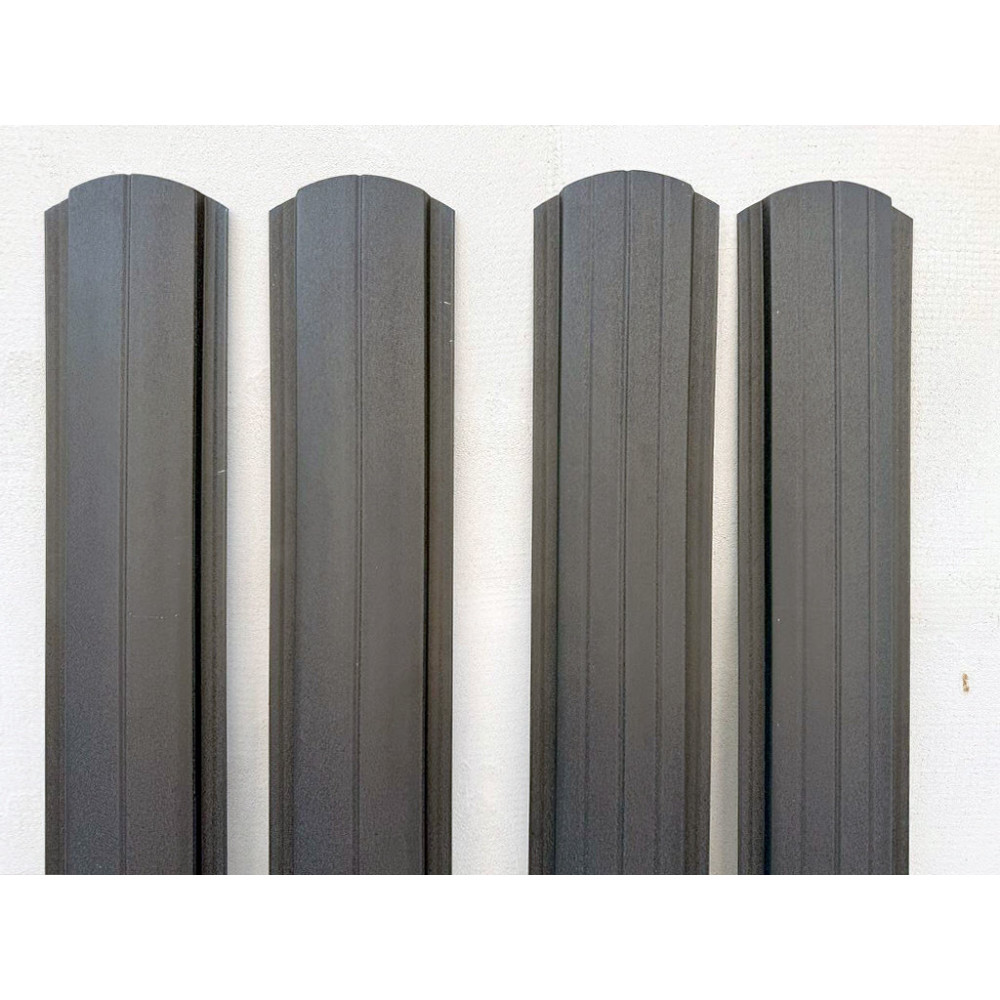

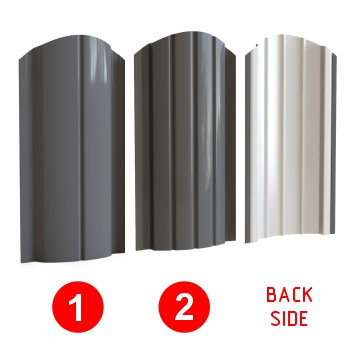

The machine can manufacture half-round metal pickets with:

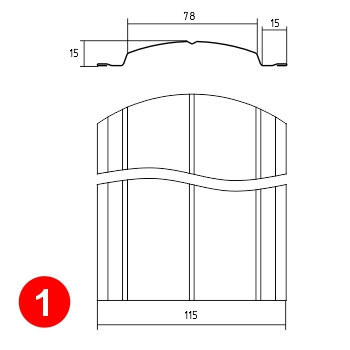

• one stiffening rib
• three stiffening ribs

The additional ribs significantly improve profile rigidity while maintaining an attractive appearance.

Fully Automatic Production

After entering the required production parameters, the machine automatically performs:

• coil feeding
• profile roll forming
• stiffening rib forming
• length measuring
• automatic cutting

This automation increases productivity while ensuring identical dimensions for every fence picket.

---

Applications

The MPF-12 is suitable for manufacturing:

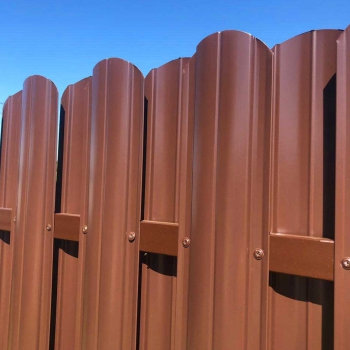

• Metal picket fences
• Steel picket fences
• Garden fences
• Decorative fencing
• Residential fence systems
• Commercial fencing
• Perimeter security fences
• Dura Fence profiles
• Fence pickets

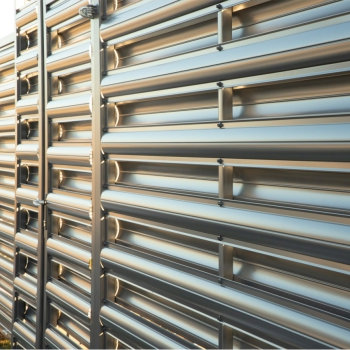

• Metal fence panels

Main Advantages

1. Fully automatic production cycle
2. High production efficiency
3. Precise profile geometry
4. Automatic electromechanical cutting system
5. Programmable cutting length
6. Low maintenance requirements
7. Reliable operation
8. High-quality finished products



Why Metal Picket Fences Are Growing in Popularity

Metal picket fences have become one of the fastest-growing fencing solutions worldwide. Their modern appearance, long service life and corrosion resistance make them an excellent alternative to traditional wooden fences.

Half-round steel pickets with strengthening ribs provide excellent rigidity while maintaining an attractive design suitable for residential, commercial and industrial fencing projects.

With the increasing global demand for metal fencing systems, investing in an automatic metal picket fence roll forming machine allows manufacturers to increase productivity, improve product quality and expand their product range.

Why Choose Evolutioner™?

Evolutioner supplies professional roll forming equipment for sheet metal processing and fence manufacturing.

We provide complete production solutions including:

• Roll forming machines
• Decoilers
• Cut-to-length systems
• Automatic production lines
• Technical support
• Installation assistance
• Operator training

Our engineers help customers select the optimal configuration according to production capacity and finished product requirements.
