Electric Elbow Machine EEM-150

Electric Elbow Machine EEM-150

Dimension: 130.00Sm x 110.00Sm x 60.00Sm
Weight: 350.00Kg

Professional help to start working
Improving old models
Warranty service
Worldwide shipping
Quality materials
Quality control

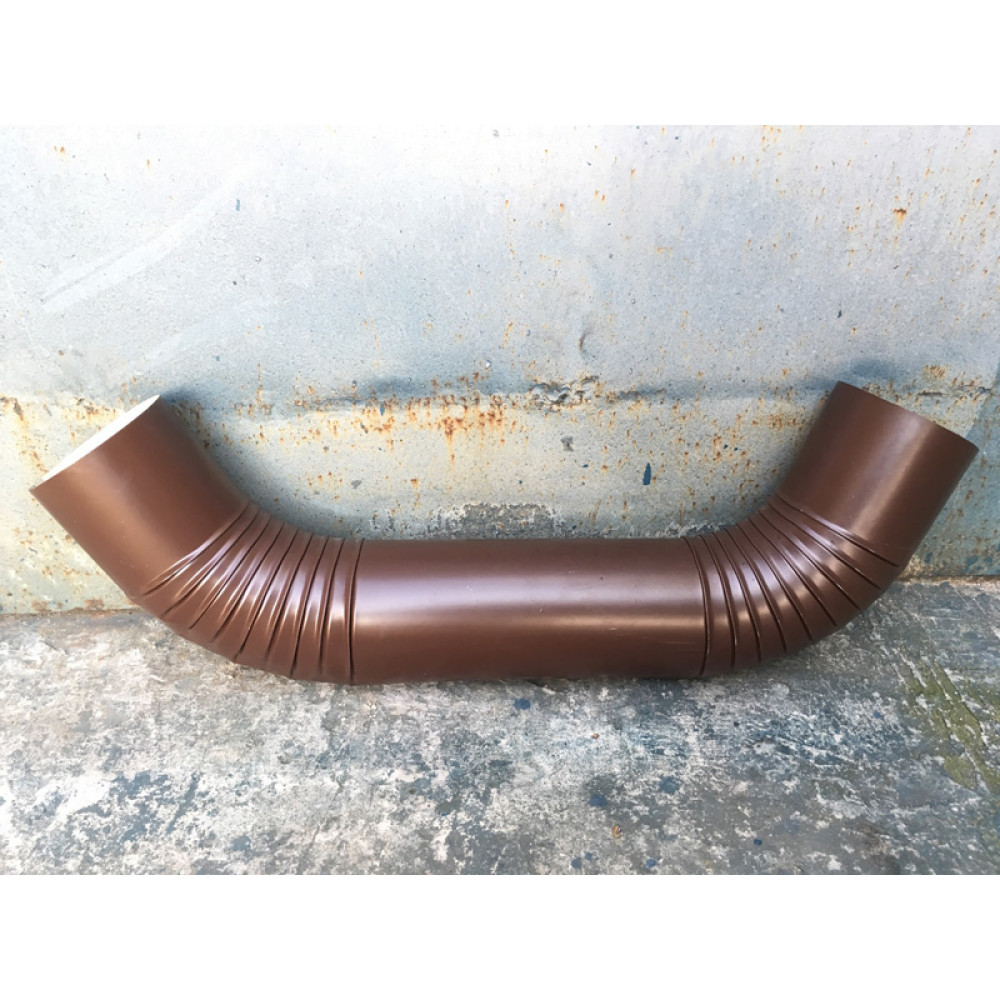

Electric Elbow Machine EEM-150 150  is used for crimping elbows from round and rectangular pipes that are used in process of assembling ventilation and drainage systems.  The corrugated elbow looks fancy and it could be produced from the pipes with different diameters. There are three types of electric elbow machines we make:

  1. Electric elbow machine for pipes from 80mm to 150mm diameter.
  2. Electric elbow machine for pipes from 80mm to 200mm diameter.
  3. Electric elbow machine for pipes from 80mm to 250mm diameter.


This Electric elbow machine crimps pipes in the range from 80 to 150mm with up or down pipe lock.


Elbow machine is electric so it doesn’t need any air or oil system to work. Electric consumption is 1.5 kW/hour for this electric elbow machine. The needed voltage is 380V. It could be used in environment with temperature from -5 to +45 Celsius degrees.

Electric elbow machine can produce corrugated elbows from the pipes with different diameters thanks to special nozzles. The standard set of nozzles includes three dimensions which you can choose by your own. Also you can purchase additional nozzles so they will let you to crimp any sizes of downspout elbows you want. To change one nozzle to another one it takes the operator of the electric elbow machine less than 5 minutes. The process of one elbow producing takes less than 1 minute for the electric elbow machine.

While working nozzles don’t damage outside part of the pipes so you can use coated pipes for producing elbows with our elbow making machine.

This electric elbow bending machine is very simple to use and it will help you to make high quality products.

Our enterprise has started to produce this kind of electric elbow machines since 2010 so we have great experience in doing our job and can propose a great solution to your business.
To get information about price of this electric elbow machine and the way it could be delivered to your location just contact us. We will give you all the information you need


Quick order


Electric Elbow Machine EEM-150
Product Code: EEM-150
Weight 350.00Kg

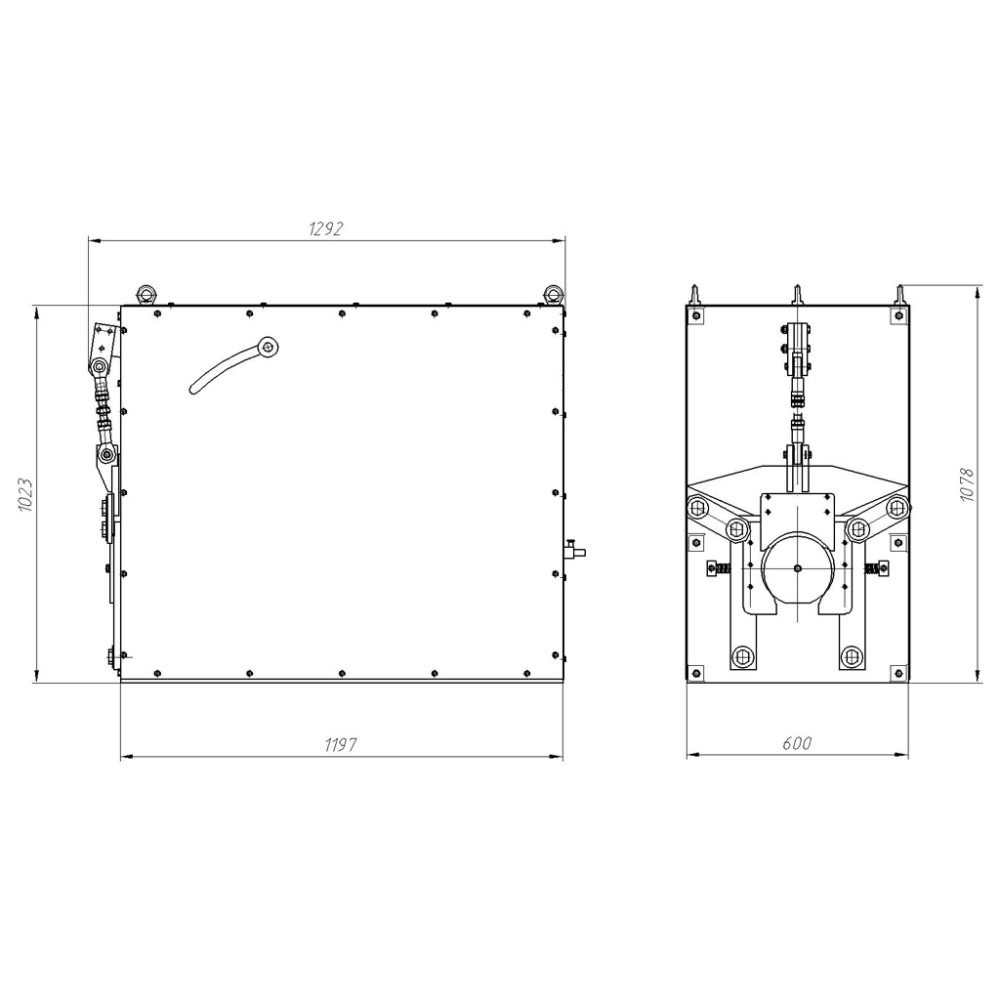

Dimensions (L x W x H) 130.00Sm x 110.00Sm x 60.00Sm
The material thickness 0.6mm
Round product
The diameter of the pattern 80-150mm
Power 380V
Engine power 1.5-2kW
