- Brand: EVOLUTIONER™
- Product Code: EEM-200
- Sku: 93
- Availability: In Stock
Weight: 350 kg
Dimensions (LxWxH): 130 cm x 110 cm x 60 cm

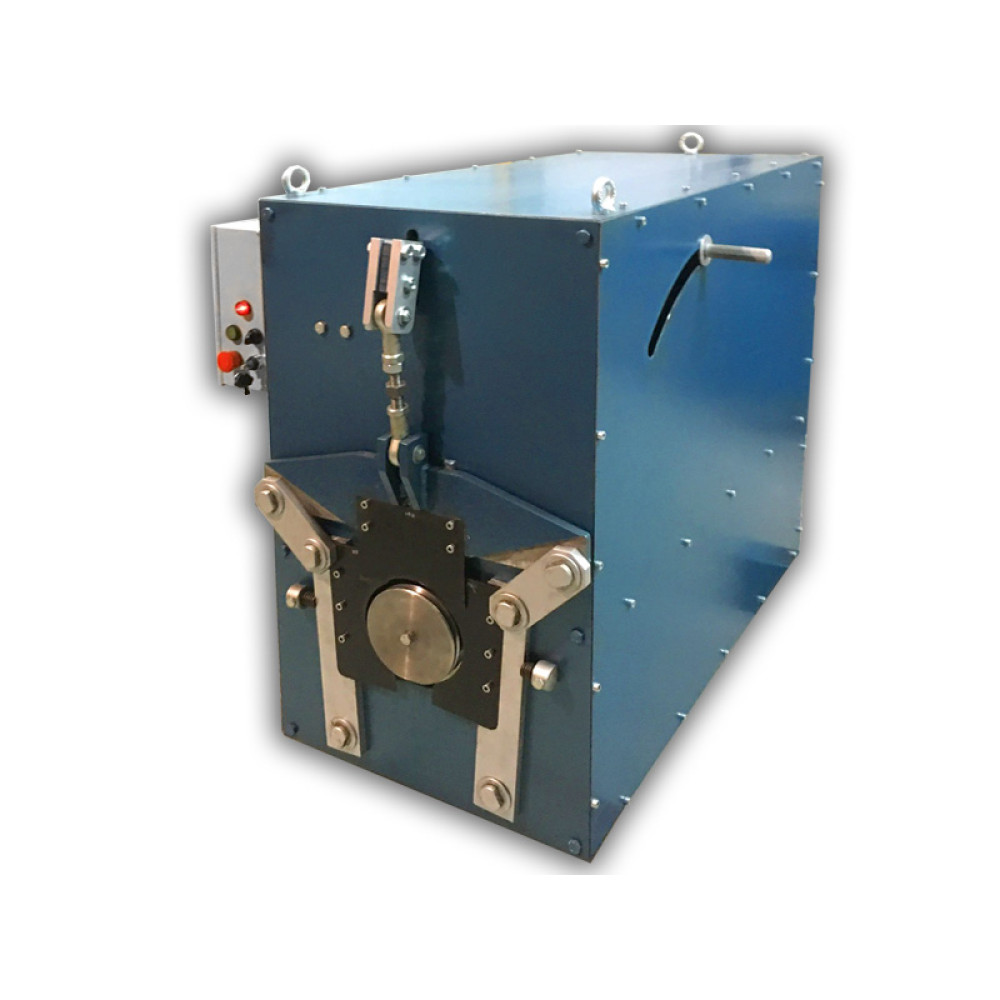

On the base of the electric elbow machine EEM-150 we designed elbow forming machine EEM-200 that could work with the pipes not only in the range 80-150mm but also in the range 150-200mm (with the upper lock on the pipes).

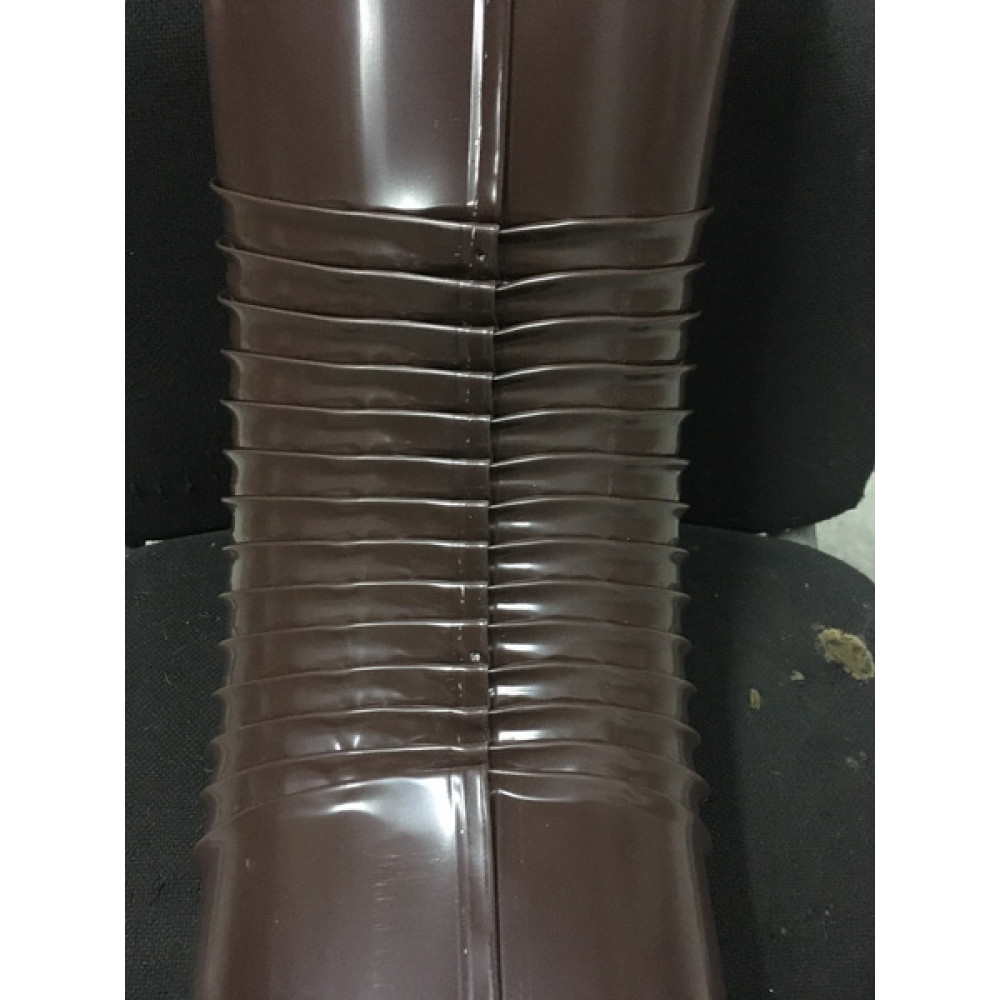

Elbow forming machine EEM-200 is used for crimping elbows from round and rectangular pipes that are used in process of assembling ventilation and drainage systems. The corrugated elbow looks fancy and it could be produced from the pipes with different diameters. There are three types of elbow forming machines we make:
- Elbow forming machine EEM-150 for the pipes from 80mm to 150mm diameter.
- Elbow forming machine EEM-200 for the pipes from 80mm to 200mm diameter.
- Elbow forming machine EEM-250 for the pipes from 80mm to 250mm diameter.
Elbow forming machine EEM-200 is electric so it doesn’t need any air or oil system to work. Electric consumption is 1.5 kW/hour for this elbow forming machine. The needed voltage is 380V. It could be used in environment with temperature from -5 to +45 Celsius degrees.
Elbow forming machine EEM-200 can produce corrugated elbows from the pipes with different diameters thanks to special nozzles. The standard set of nozzles includes three dimensions which you can choose by your own. Also you can purchase additional nozzles so they will let you to crimp any sizes of downspout elbows you want. To change one nozzle to another one it takes the operator of the elbow forming machine EEM-200 less than 5 minutes. The process of one elbow producing takes less than 1 minute for the elbow forming machine EEM-200.
While working nozzles don’t damage outside part of the pipes so you can use coated pipes for producing elbows with our elbow forming machine EEM-200
This elbow forming machine EEM-200 is very simple to use and it will help you to make high quality products. Our enterprise has started to produce this kind of the elbow forming machine EEM-200 since 2010 so we have great experience in doing our job and can propose a great solution to your business.
To get information about price of this elbow forming machine EEM-200 and the way it could be delivered to your location just contact us. We will give you all the information you need.
